• Capacity: 0-100kg
• Material: Stainless steel
• Nonlinearity: 0.5%F.S.
• Rated output: 0.5mV/V (0-3kg)
• 1.0-1.5mV/V (5-100kg)
• Recommended excitation: 5V-10VDC
• Maximum excitation: 10VDC
• Protect class: IP64
• Compensated temp range: -10~40°C
• Hysteresis: 0.5%F.S.
• Operating temp range: -20~80°C
• Repeatability: 0.1%F.S.
• Insulation: >5000MΩ/100VDC
• Input impedance: 350±5Ω (1000±100Ω)
• Output impedance: 350±5Ω (1000±100Ω)
• Creep (30min): 0.1%F.S.
• Temp effect on output: 0.2%F.S./10°C
• Zero balance: ±2%F.S.
• Temp effect on zero: 0.2%F.S./10°C
• Limit load: 150%
• Breaking load: 200%
• Cable size: Ø3x4m
• Life: Full scale more than 1 million times
• Cable connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White

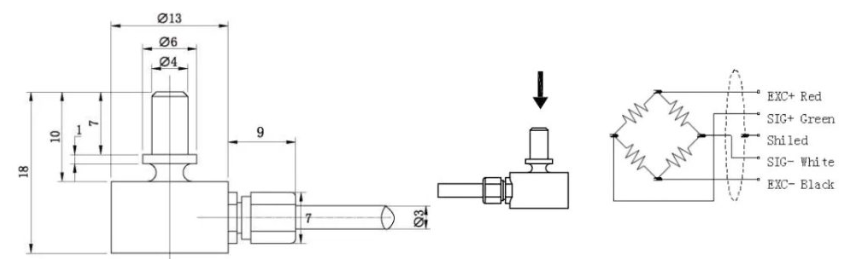

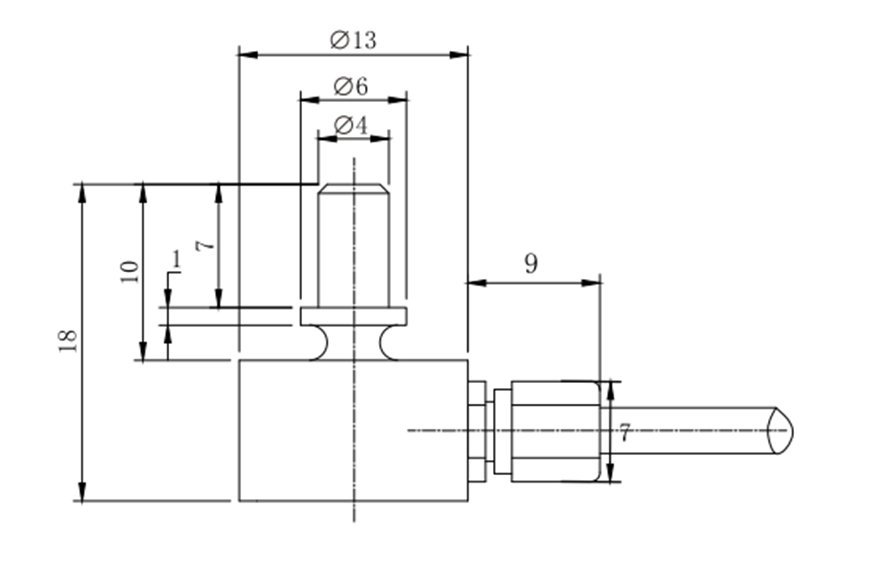

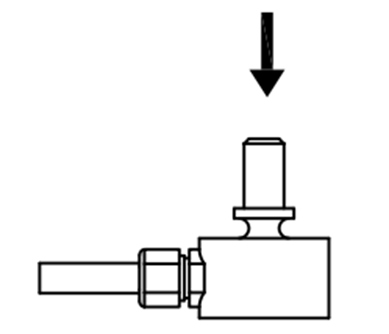

제품 도면 및 결선도
