LVDT / HBT STANDARD PROBE

- Measuring range : ±5mm

- Repeatability : ≤0.4㎛

- Linearity error(±3mm) : ≤0.1％

- Cable length : 3m (Option : 5/10m)


제품 사양

ModelDP-10DP-10V
Plunger Movement bySpring pushSpring push
  Vacuum retract
Maximum stroke10.45mm
Measuring Range(MR)±5mm
Repeatability≤0.4㎛
Linearity error(±3mm)≤0.1％
Measuring Force(±25%, at electrical zero)80g(0.8N)
Cable OutletAxialRadial
Cable length3m(Option : 5/10m)
External DiameterΦ8
GaiterHNBR or FKM(fluoroelastomer)
LifeGenerally, ≥10 million in most application
Operating temp0 ~ 50℃


제품 도면

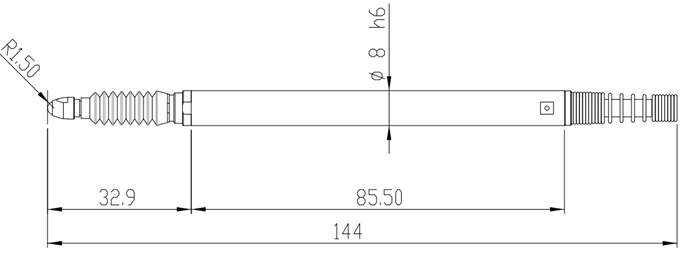

  1. DP-10

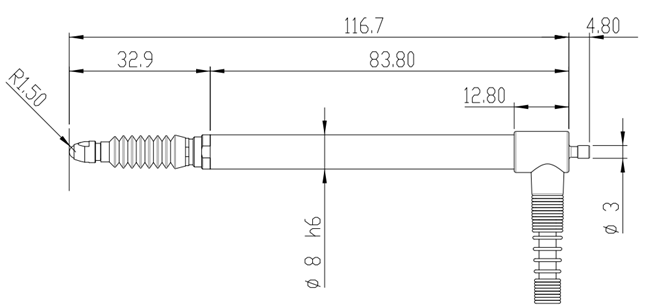

  2. DP-10V
