LVDT / HBT STANDARD PROBE

- Measuring range : ±1mm

- Repeatability : ≤0.15㎛

- Linearity error(±1mm) : ≤0.2％

- Cable length : 2.2m (Option : 3/5/10m)


제품 사양

ModelDP-S2DP-S2V
Plunger Movement bySpring pushSpring push
  Vacuum retract
Maximum stroke2.8mm
Measuring Range(MR)±1mm
Repeatability≤0.15㎛
Linearity error(±1mm)≤0.2％
Measuring Force(±25%, at electrical zero)48g(0.5N)
Cable OutletAxialRadial
Cable length2.2m(Option : 3/5/10m)
External DiameterΦ8
GaiterHNBR or FKM(fluoroelastomer)
LifeGenerally, ≥10 million in most application
Operating temp0 ~ 50℃



제품 도면

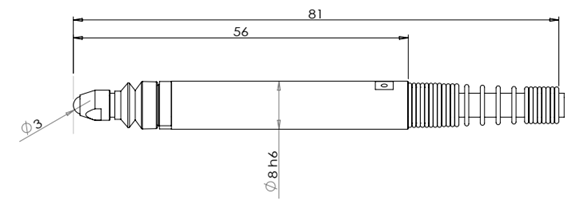

  1. DP-S2

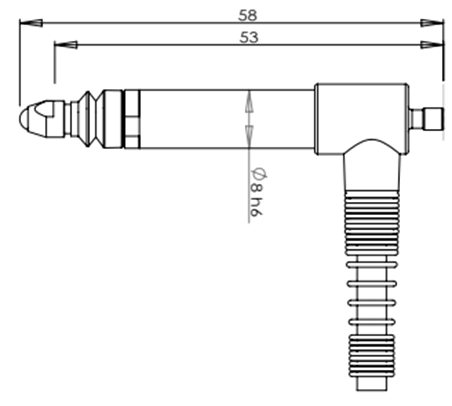

  2. DP-S2V
