LVDT / HBT STANDARD PROBE

- Measuring range : ±0.5mm

- Repeatability : ≤0.15㎛

- Linearity error(±0.5mm) : ≤0.4％

- Cable length : 2.2m (Option : 3/5/10m)


제품 사양



ModelDP-S1DP-S1V
Plunger Movement bySpring push
Maximum stroke1.4mm
Measuring Range(MR)±0.5mm
Repeatability≤0.15㎛
Linearity error(±0.5mm)≤0.4％
Measuring Force(±25%, at electrical zero)48g(0.5N)
Cable OutletAxialRadial
Cable length2.2m(Option : 3/5/10m)
External DiameterΦ8
GaiterHNBR or FKM(fluoroelastomer)
LifeGenerally, ≥10 million in most application
Operating temp0 ~ 50℃

제품 도면

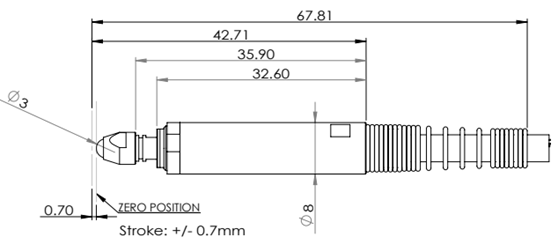

  1. DP-S1

  2. DP-S1V
