LVDT / HBT STANDARD PROBE

- Measuring range : ±12.5mm

- Repeatability : ≤0.5㎛

- Linearity error(±8mm) : ≤40㎛(0.25％)

- Cable length : 3m (Option : 5/10m)


제품 사양

ModelDP-25
Plunger Movement bySpring push
Maximum stroke26mm
Measuring Range(MR)±12.5mm
Repeatability≤0.5㎛
Linearity error(±8mm)≤40㎛(0.25％)
Measuring Force(±25%, at electrical zero)180g(1.8N)
Cable OutletRadial
Cable length3m(Option : 5/10m)
External DiameterΦ 15
GaiterHNBR or FKM(fluoroelastomer)
LifeGenerally, ≥10 million in most application
Operating temp0 ~ 50℃

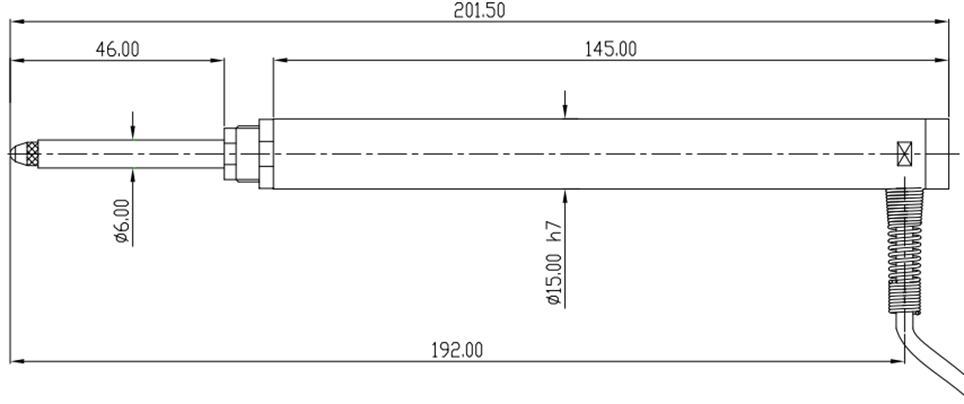

제품 도면

  1. DP-25
