LVDT / HBT STANDARD PROBE

- Measuring range : ±5mm

- Repeatability : ≤0.4㎛

- Linearity error(±3mm) : ≤0.1％

- Cable length : 3m (Option : 5/10m)


제품 사양

ModelDP-15DP-15V
Plunger Movement bySpring pushSpring push
Maximum stroke15.5mm
Measuring Range(MR)±7.5mm
Repeatability≤0.5㎛
Linearity error(±5mm)≤0.3％
Measuring Force(±25%, at electrical zero)80g(0.8N)
Cable OutletAxialRadial
Cable length3m(Option : 5/10m)
External DiameterΦ8
GaiterHNBR or FKM(fluoroelastomer)
LifeGenerally, ≥10 million in most application
Operating temp0 ~ 50℃


제품 도면

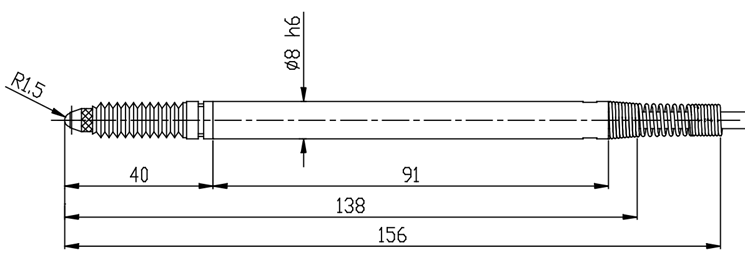

  1. DP-15

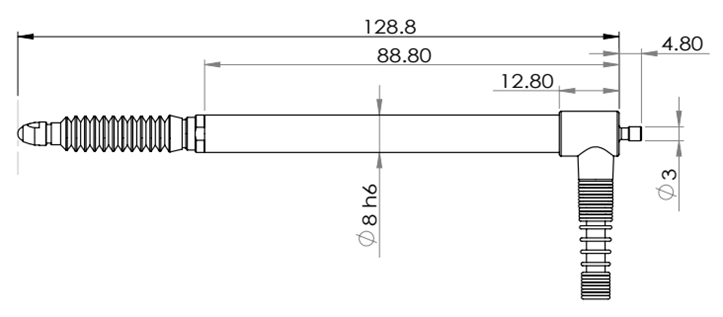

  2. DP-15V
