제품사양

• Capacity: 0-10000kg
• Material: Stainless steel, Alloy steel
• Nonlinearity: 0.05%F.S.
• Rated output: 2.0±10%mV/V
• Recommended excitation: 5-10VDC
• Maximum excitation: 15VDC
• Hysteresis: 0.05%F.S.
• Compensated temp range: -10~40°C
• Repeatability: 0.05%F.S.
• Operating temp range: -20~80°C
• Input impedance: 400 ±50Ω
• Insulation: ≥5000MΩ/100VDC
• Creep (30min): 0.1%F.S.
• Output impedance: 350 ±5Ω
• Zero balance: ±2%F.S.
• Temp effect on output: 0.05%F.S./10°C
• Limit load: 150%
• Temp effect on zero: 0.05%F.S./10°C
• Cable size: Ø3x3m
• Breaking load: 200%
• Life: Full scale more than 1 million times
• Cable connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White

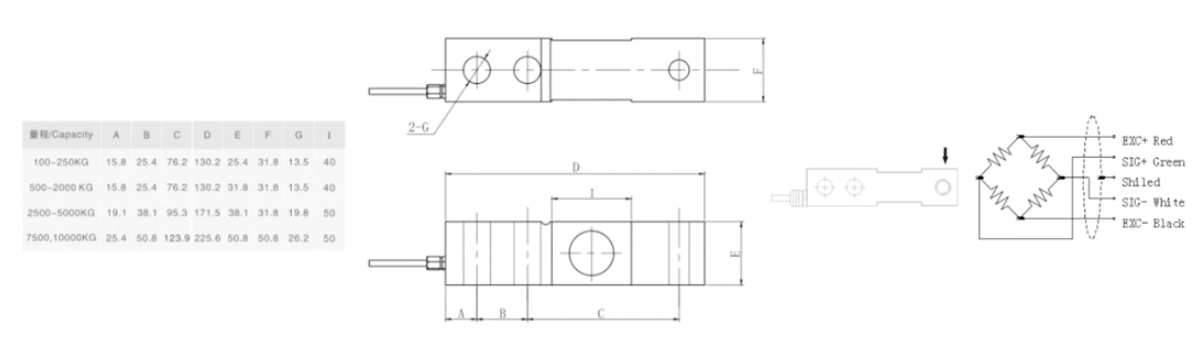

제품 도면 및 결선도
