LVDT / HBT STANDARD PROBE

- Measuring range : ±2mm

- Repeatability : ≤0.15㎛

- Linearity error(±1mm) : ≤0.1％

- Cable length : 2.2m (Option : 3/5/10m)


제품 사양

ModelDP-S4DP-S4V
Plunger Movement bySpring pushSpring push
  Vacuum retract
Maximum stroke4.95mm
Measuring Range(MR)±2mm
Repeatability≤0.15㎛
Linearity error(±1mm)≤0.1％
Measuring Force(±25%, at electrical zero)48g(0.5N)
 [Option : 4~90g(0.04~0.9N)]
Cable OutletAxialRadial
Cable length2.2m(Option : 3/5/10m)
External DiameterΦ8
GaiterHNBR or FKM(fluoroelastomer)
LifeGenerally, ≥10 million in most application
Operating temp0 ~ 50℃


제품 도면


  1. DP-S4

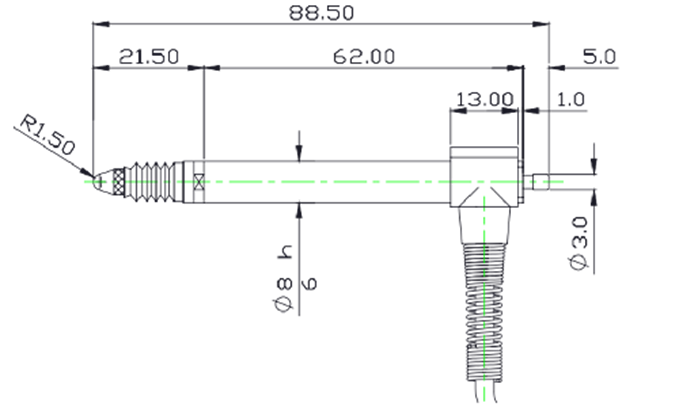

  2. DP-S4V
