DIGITAL GAUGE(INCREMENTAL)

- Measuring range(MR) : 155mm, 205mm

- Maximum Resolution(Res) : 0.5 μm

- Accuracy(Acc) : 5 μm p-p to 6 μm p-p (depends on the model)

- Dustproof, drip proof, and oilproof construction. Good environmental resistance. (P type)

- Measurement can be performed by adsorbing it to the moving table with the attached magnetic adsorption type feeler (DK155/205).

- Built-in reference point

- Output signal: A/B/reference point (Voltage-differential line driver output)

제품 사양

Model	DK155PR5	DK205PR5
Output	A/B/reference point, voltage-differential line driver output (conforming to EIA-422)
Spindle drive system	None
Maximum resolution*1	0.5 μm
Measuring range	155 mm	205 mm
Accuracy (at 20 °C)	5 μm p-p	6 μm p-p
Reference point	at 5 mm ±0.5 mm position of spindle movement
Maximum response speed	250 m/min
Vibration resistance	150 m/s2 (10 to 2,000 Hz)
Impact resistance	1,500 m/s2 (11 ms)
Protection grade	IP64
Operating temperature	0 to +50 °C
Storage temperature	-20 to +60 °C
Power supply	DC +5 V ±5 %
Power consumption	1 W or less
Cable length	Approx. 2.5 m
Stem diameter	φ32 (0 to 0.05) mm
Mass*2	Approx. 1,100 g	Approx. 1,300 g
Surface to be measured	Soft magnetic material
Magnetically attachable feeler	Magnetic attraction : 10 N, resistance against horizontal slip : 2.7 N Provided with φ4 mm carbide ball tip
Spindle*3	Spindle φ8 mm, radial swing : max.0.04 mm
Output cable length	22 m max.
(up to the electronic section)
Accessories	+P M4x5 screw (2 pcs.), instruction manual

*1 The resolution setting needs to be made when connecting to the LT30 series, MG series, and LY70 series. For details, please refer to the respective instruction manual.
*2 The mass indicated is the total mass excluding the cable and interpolation box.
*3 The spindle mass about 400 g.

제품 도면

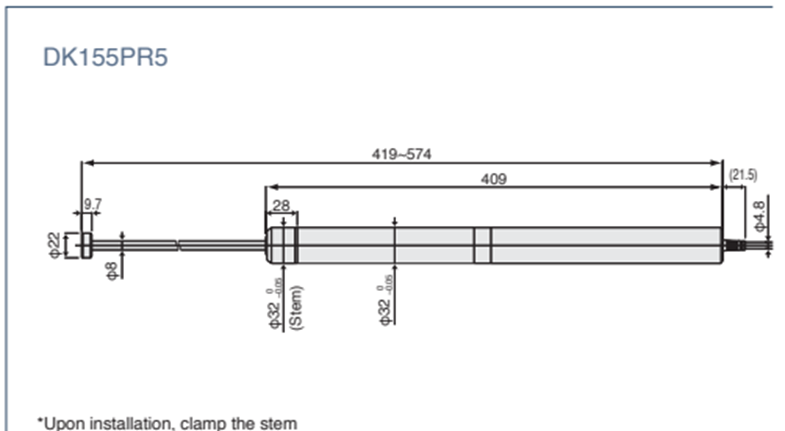

DK155PR5

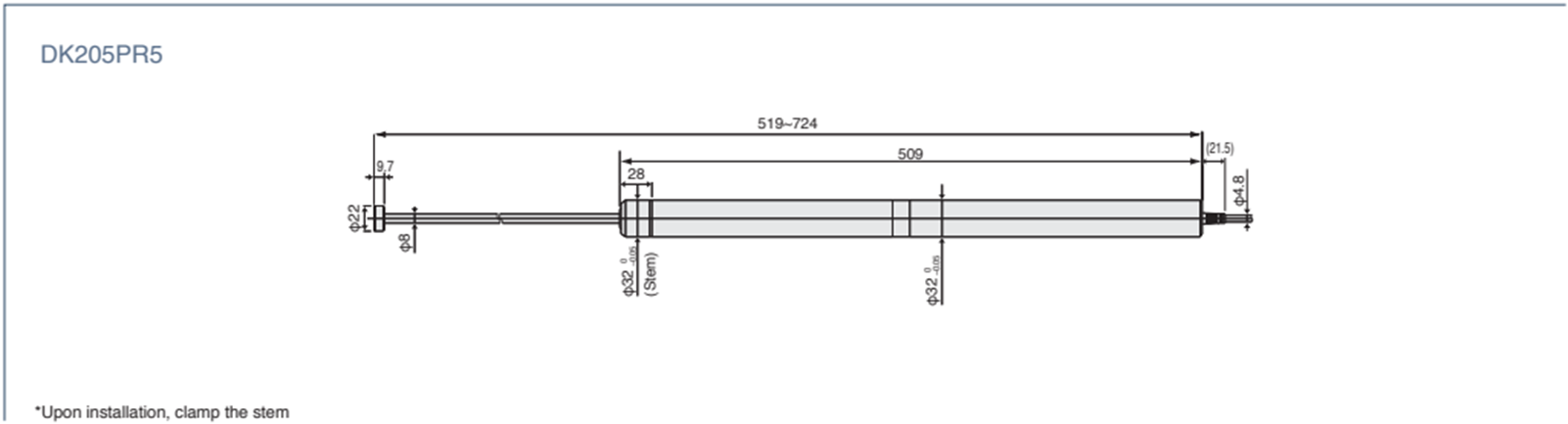

DK205PR5

Extension cable

CE08-1, 3, 5, 10, 15	Extension cable for LT series / MG series (1, 3, 5, 10, 15 m)
CK-T12, 13, 14, 15, 16	Flex-resistant extension cable for LT series / MG series (1, 3, 5, 10, 15 m)
