DIGITAL GAUGE(INCREMENTAL)

- Measuring range(MR): 12 mm

- Maximum resolution(Res): 0.1 µm, 0.5 μm

- Accuracy(Acc): 1 µm p-p to 1.5 µm p-p (Depends on the model)

- Maximum response speed: 80 m/min (resolution 0.1 µm), 250 m/min (resolution 0.5 µm)

- Bearing structure: Improved sliding performance through the use of highly durable ball spline bearings

- High durability: 320 million sliding cycles or more (under continuous evaluation as of January 2021)

- Protection grade: IP67 (straight type / right angle type with air tube)

- Built-in reference point

- Output signal: A/B/reference point (Voltage-differential line driver output)

- Flange type is also available for strong fixing.


제품 사양

ModelDK830SRDK830SLRDK830SVR
Measuring range30 mm
Maximum resolution0.1 µm
Accuracy(at 20 °C)1.3 µm p-p1.7 µm p-p
Measuring force(at 20 °C)Upward: 0.5 ±0.35 NAir presser 0.07 Mpa 1.9 N or less for all diection
Horizontal: 0.6 ±0.35 NAir presser 0.09 Mpa 2.6 N or less for all diection
Downward: 0.7 ±0.35 N　
Operating temperature0 to +50 °C (no condensation)
Storage temperature-20 to +60 °C (90 %RH or less)
Maximum response speed80 m/min
Reference point response speed80 m/min
Spindle drivingSpring pushPneumatic push
Reference pointat 1 mm ±0.5 mm position of spindle movement
Protection grade *1IP53IP53/IP67 *2
Vibration resistance100 m/s2 (20 to 2,000 Hz)
Impact resistance1,000 m/s2 (11 ms)
Stem diameterΦ8 mm
FeelerCarbide ball tip, mounting screw M2.5
Power supplyDC 5 V ±5 %
Power consumption1 W
Mass *3Approx. 70 gApprox. 80 g
OutputA/B/reference point, voltage-differential line driver output (conforming to EIA-422)
Output cable length2.5 m
AccessoriesSpanner, instruction manual, supplement, +P M4 x 5 screws (2pc)

*1 Excluding interpolation box and connector
*2 When using the Bellows Set (optional accessory)
*3 Excluding cable section and interpolation box

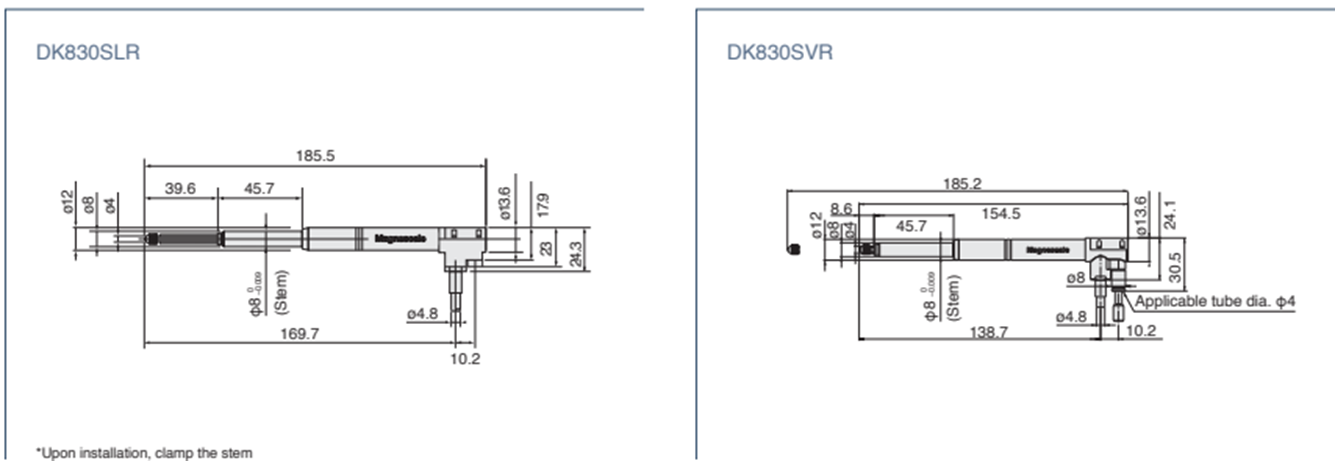

제품 도면

  1. DK830S Series


Extension cable

CE08-1, 3, 5, 10, 15
Extension cable for LT series / MG series (1, 3, 5, 10, 15 m)
CK-T12, 13, 14, 15, 16
Flex-resistant extension cable for LT series / MG series (1, 3, 5, 10, 15 m)
