ML-MP-R Series(RUN-OUT)

- 4.2" Color TFT LCD

- Easy operation with touch pad

- Data saving on SD card

- Calculation Functions (Rmin , Rmax , Ravg , Rcen)

- STANDARD(ML-MP-S Series)_AIR(ML-MP-A Series) 별도


제품 사양

ModelML-MP-R1 ~ RT6
Display4.2” Color TFT LCD with touch pad
Resolution0.001mm or 0.01mm (Option : 0.0001mm)
Input channels1Ch ~ 6Ch
Size(mm) W x H x D (Panel hole W x H)128 x 100 x 154 (123 x 93)
Power inputAC100~220V 50Hz/60Hz(Option : DC24V)
Data communicationRS232C (Option : RS485)
Serial commandCLEAR , ZERO , RESET , START , RECALL
I/O Port6 Input(START,ZERO,MODEL BIT,etc)
 / 6 Output(OK,NG,READY,etc)
Data storageSD card
CompatibilityDP series(DONG-DO analog probes) Option : other makers

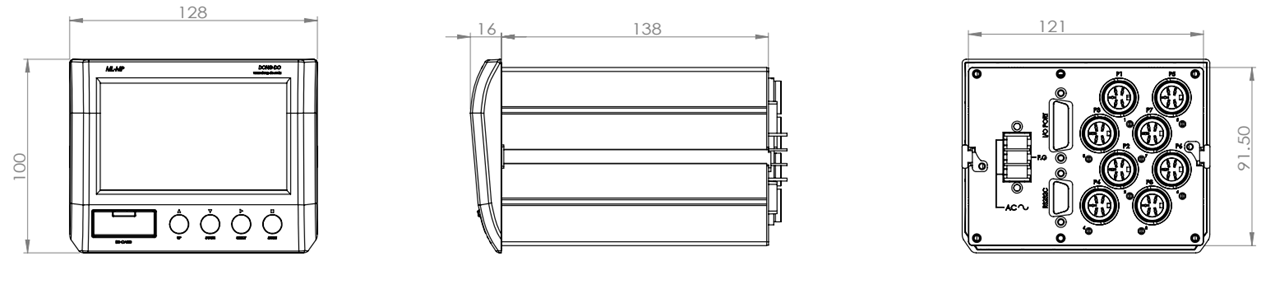

제품 도면

  1. ML-MP-R Series
