제품사양

• Capacity: 0-20 kg
• Material: Stainless steel
• Nonlinearity: 0.05%F.S.
• Rated output: 2.0±10%mV/V
• Recommended excitation: 5V-10VDC
• Maximum excitation: 15VDC
• Protect class: IP64
• Compensated temp range: -10~40°C
• Hysteresis: 0.05%F.S.
• Operating temp range: -20~80°C
• Repeatability: 0.05%F.S.
• Insulation: ≥5000MΩ/100VDC
• Insulation: ≥5000MΩ/100VDC
• Input impedance: 350Ω ± 10Ω
• Output impedance: 350Ω ± 5Ω
• Creep (30min): 0.05%F.S.
• Temp effect on output: 0.1%F.S./10°C
• Zero balance: ±2%F.S.
• Temp effect on zero: 0.1%F.S./10°C
• Limit load: 150%
• Breaking load: 200%
• Cable size: Ø2x4m
• Life: Full scale more than 1 million times
• Cable connection: Ex+: Red; Ex-: Black; Sig+: Green; Sig-: White

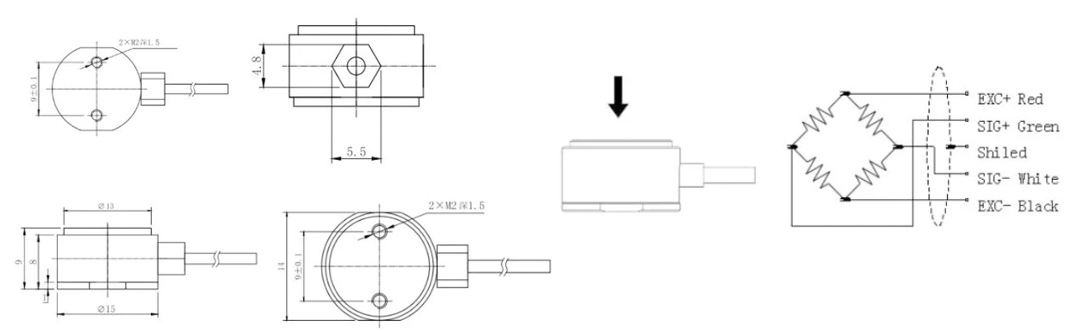

제춤 도면 및 결선도
